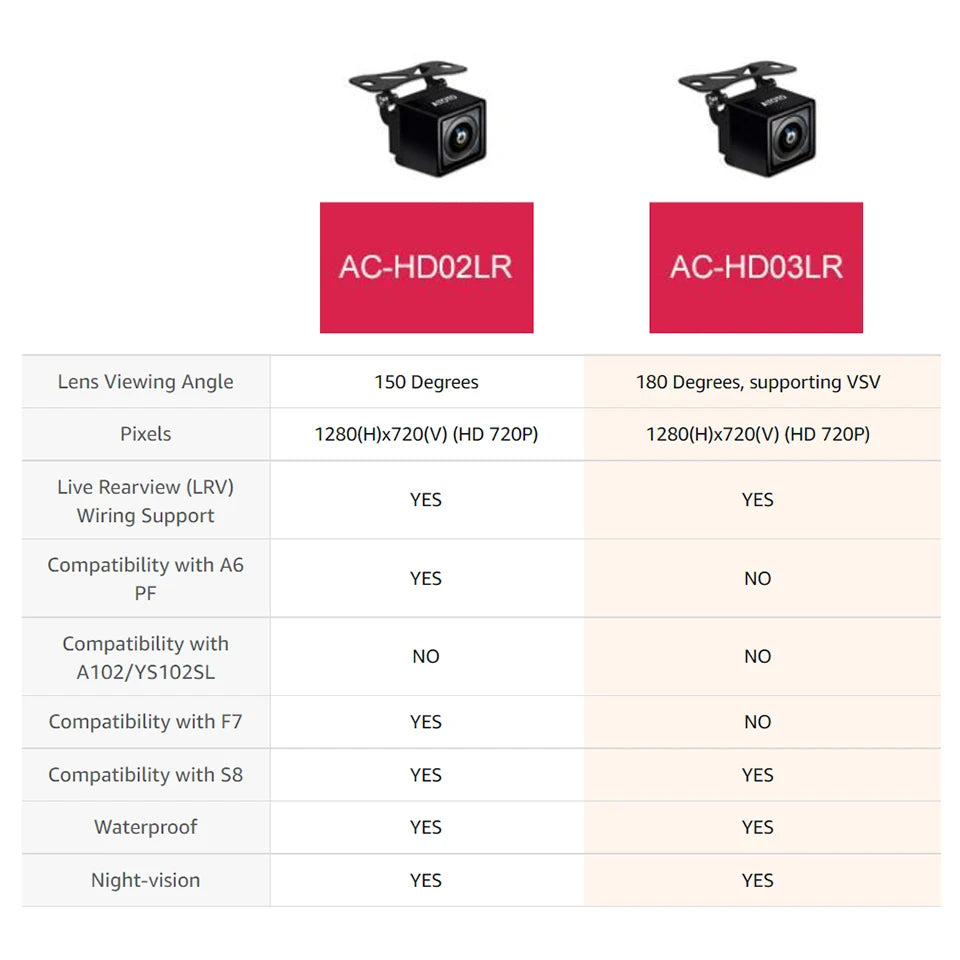

AC-HD02LR Specifications

Image sensor format: 1/2.9” CMOS
Pixels：1280(H)x720(V)
White balance: automatic
Backlight compensation: Yes
Noise reduction: 3D DNR
Video Frame rate: 720P@30FPS
Video Signal Out：Analogue HD signal, 1.0 Vp-p / 75Ω
Working Voltage: DC 12V
Working Current: 130mA～150mA
Working Temperature：-30℃～+80℃ (-22°F ～ 176°F)
Rear-view guideline: Not built-in, provided by Car stereo system
Waterproof Rate: IP67
Night-vision: YES

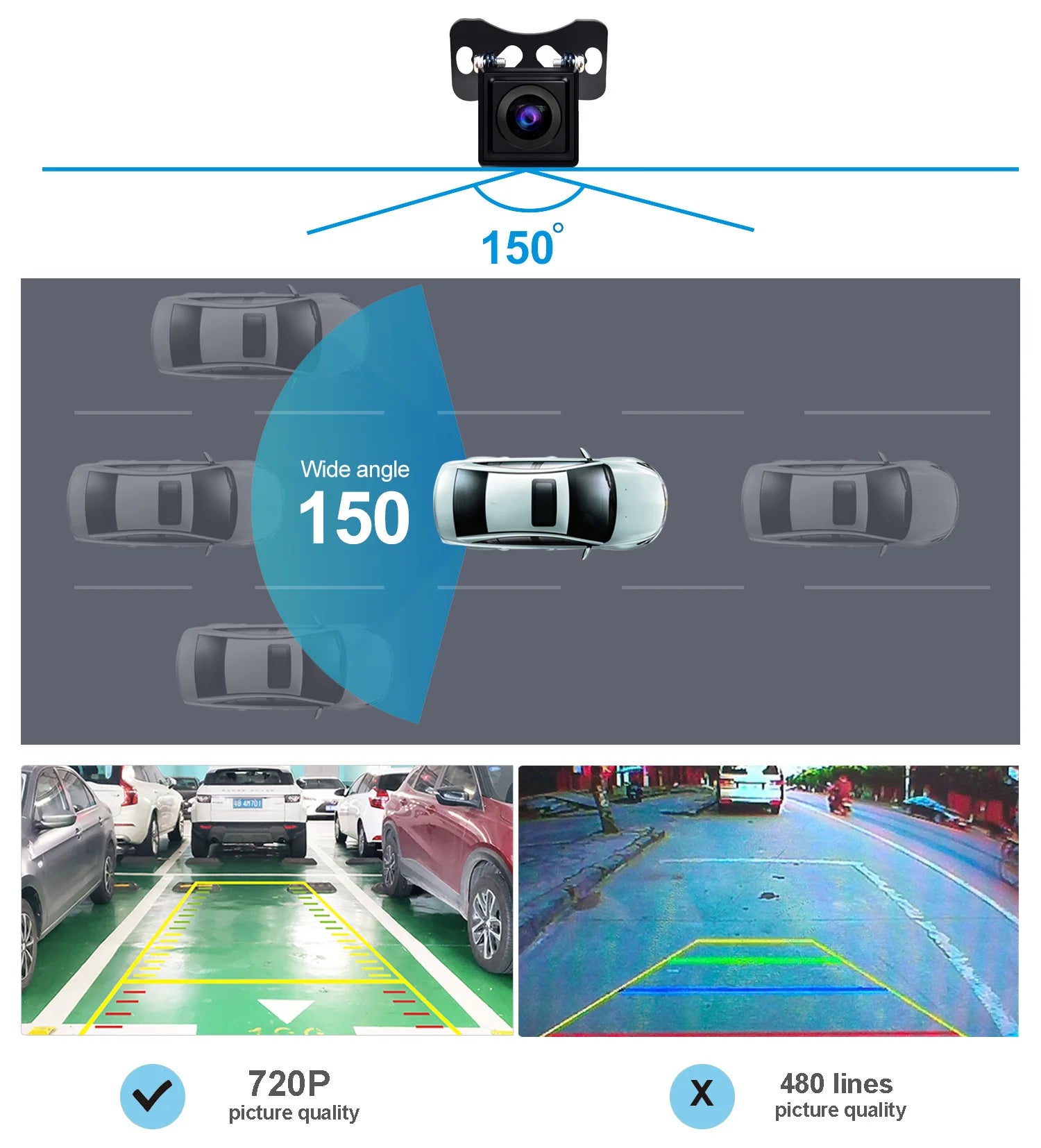

Lens Viewing Angle: 150 Degrees
Powering method: powered by ATOTO Headunit or vehicle's Accessory (ACC).
Rearview Image Access: (1). When a vehicle is in reverse gear, the rearview will display on the head unit display; (2). Manually run the Rearview app when the vehicle is moving ahead, or use steering wheel keys (if applicable). For selected S8 (Gen2) modes that come with Hand Gesture operation, gesture control is available;

Package includes Accessories

1.1x Rearwide-angle camera
2.1x Extension wire（8M)
3.2x Screws
4.1x Sticker

Accessories Note

AC-HD02LR-A (Global version, without license plate mounting bracket)
AC-HD02LR-N (North American version, with license plate mounting bracket)

ATOTO LRV (Live Rear-View) technology

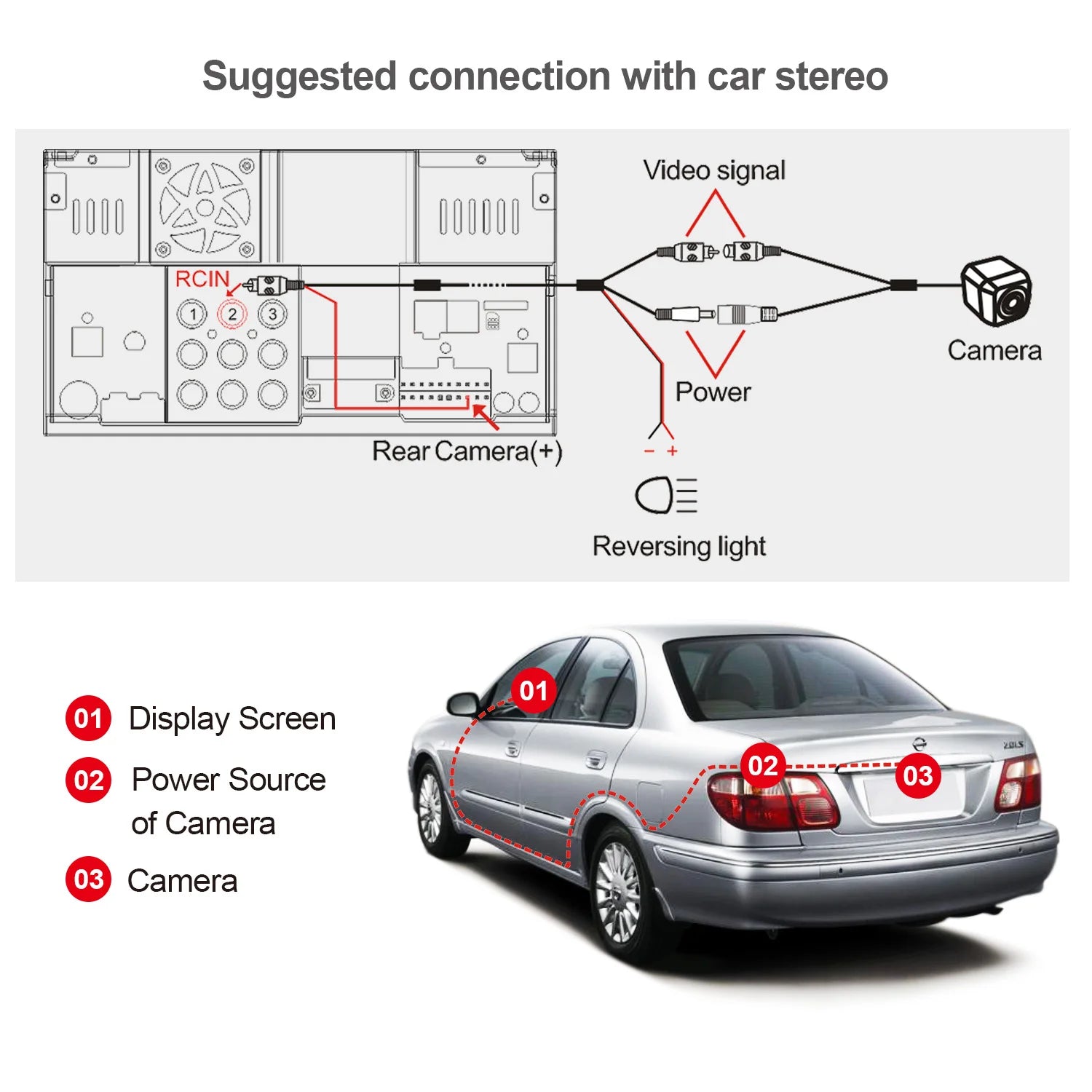

Live RearView (LRV) Feature - Access Rearview even if the vehicle is moving ahead. This could remove obstructions caused by passengers, headrests, and the vehicle’s roof and rear pillars, increasing the field of view and allowing the driver to have an unimpeded view of the lanes behind and traditional blind spots. To use this feature, special wiring is required, see below for reference.

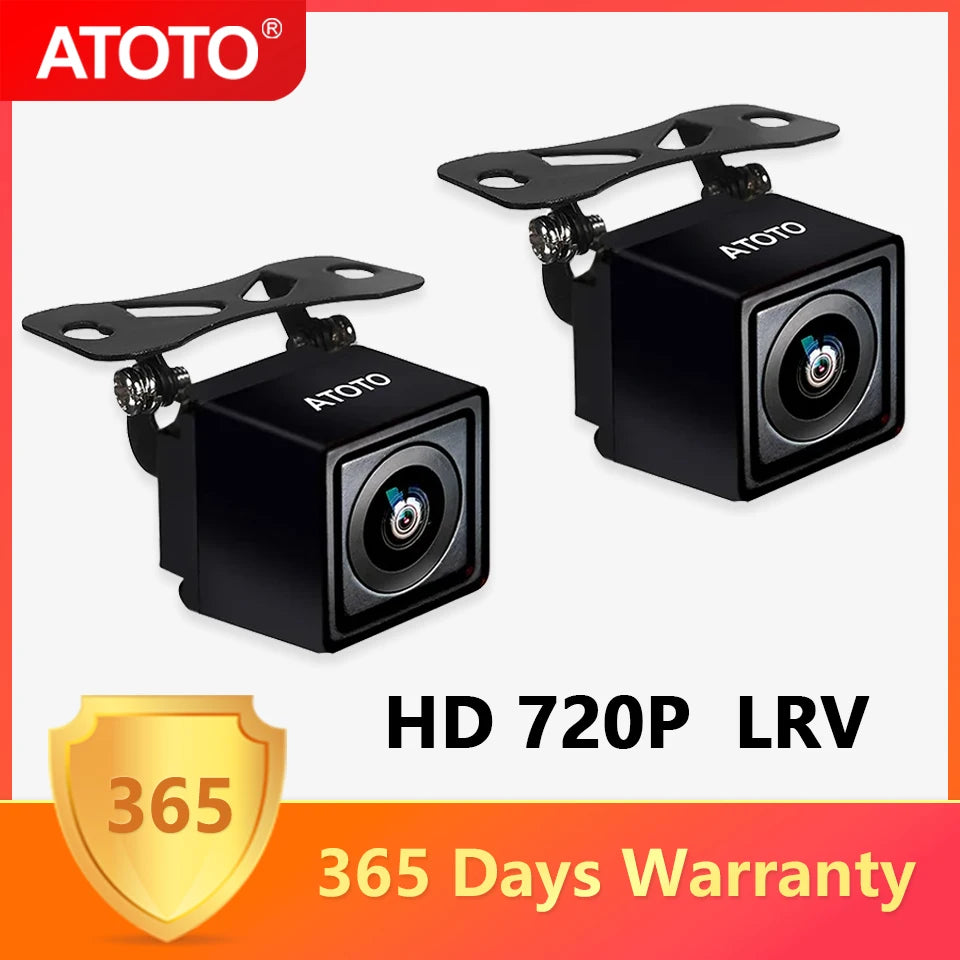

HD 720P Rear-view Backup Parking Assist Camera

which can output 720P HD video signal. Special wiring design plus system firmware support allows user to have a live rearview when vehicle is moving ahead

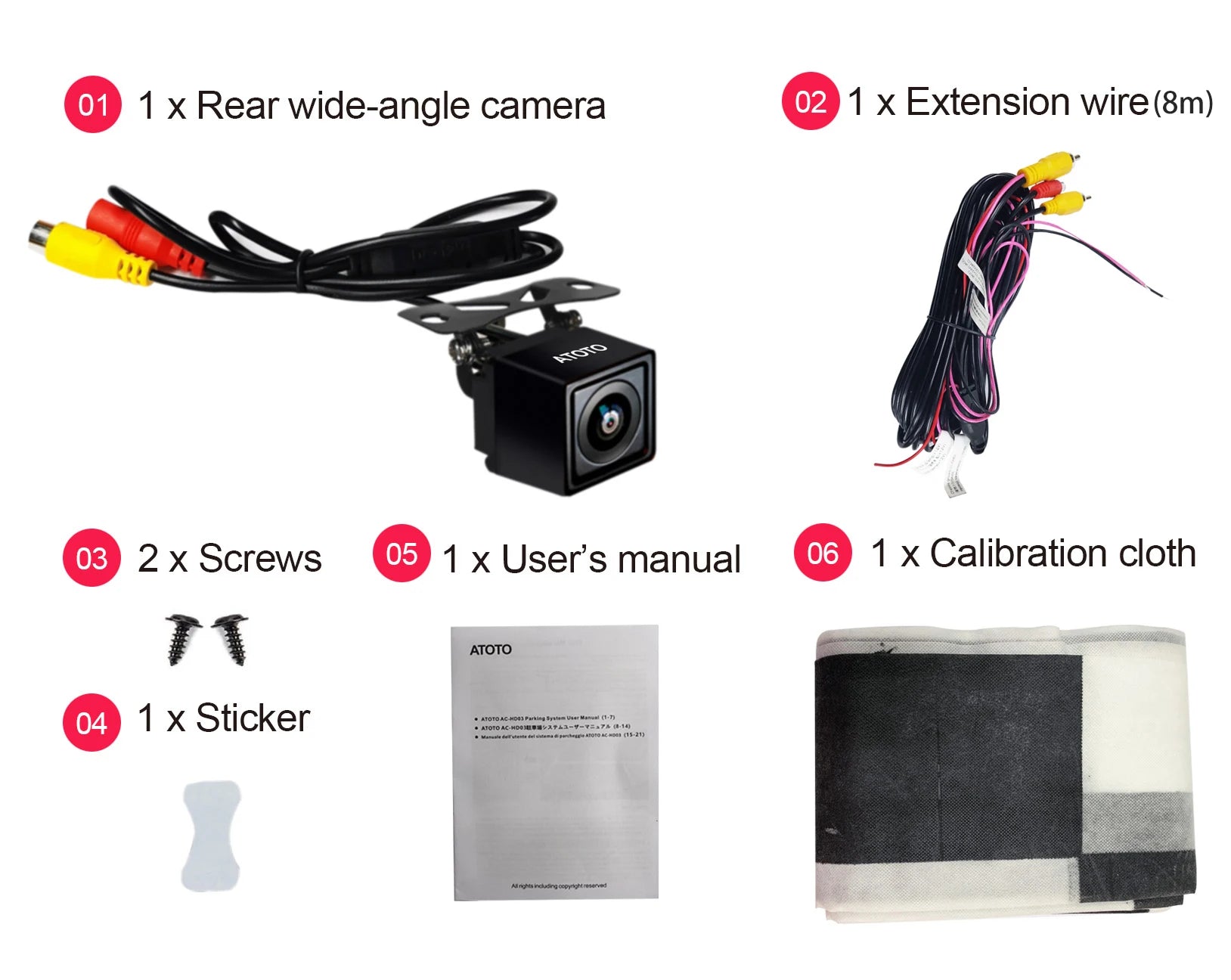

Package includes Accessories

1.1x Rearwide-angle camera
2.1x Extension wire（8M)
3.2x Screws
4.1x Sticker
5.1x User's manual
6.1x Calibration cloth

Accessories Note

AC-HD03LR-A (Global version, without license plate mounting bracket)
AC-HD03LR-N (North American version, with license plate mounting bracket)

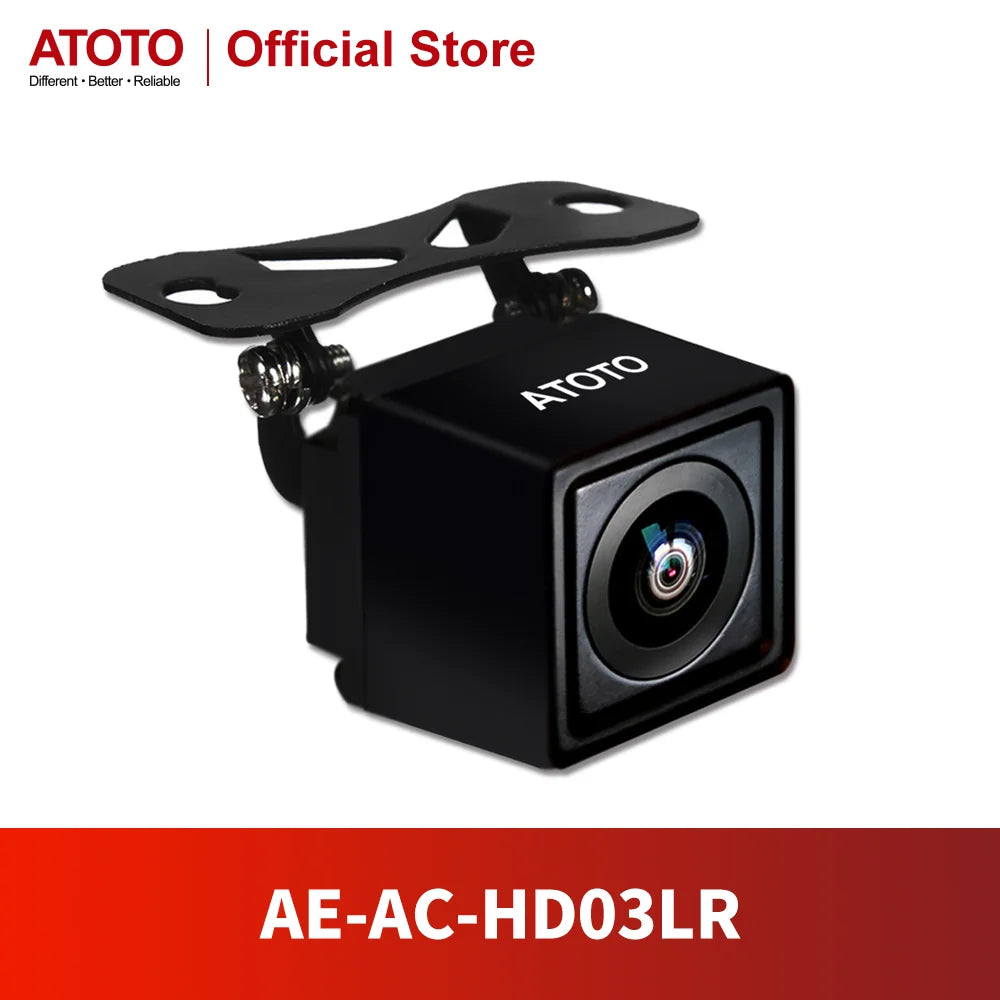

HD 720P Rear-view Backup Parking Assist Camera puts out 720P HD video signals

The special wiring design and system firmware support ability allow users to have a live rearview even when the vehicle is moving forward, avoiding obstructions caused by passengers, headrests and the vehicle’s roof & rear pillars, expanding the field of view, offering the driver an unimpeded view of the lanes behind and eliminating traditional blind spots.

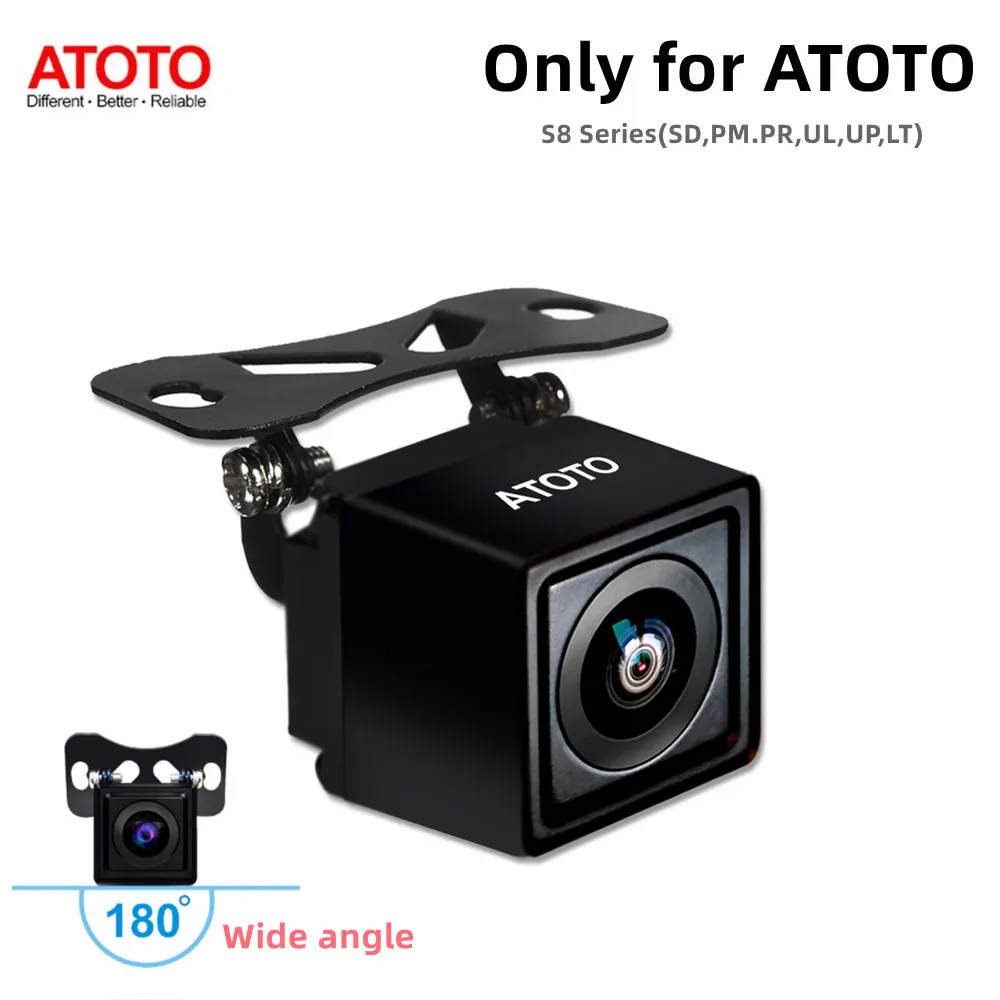

This camera has a 180°ultra wide viewing angle and is specified for working with selected ATOTO S8 Android head units that come with VSV (Virtual Surround View) parking feature.

There is a specific calibration cloth in the package and will be needed as an assisting accessory in the image calibration step

To help S8 to understand, from the perspective of a computer, where the camera is and the relative position between vehicle's body and the camera. So, please keep it for further need, in case you may need a re-calibration operation, especially when the position or direction of the camera is changed expectedly.

How does the ATOTO VSV & LRV feature on the AE-AC-HD03LR Work?

ATOTO VSV (Virtual Surround-View) rearview parking technology
There is a special image stitching algorithm built into ATOTO S8 (Gen2) car stereo for continuously processing the images (receiving, storing, calculating, stitching) sent from the AC-HD03LR camera, so it can help rebuild a dynamic, simulative but almost same-size ratio surroundings view (where the barriers, other vehicles, or your vehicle is). The rebuilt surrounding view is not a real image of the surroundings, but it is a live/dynamic image. There is another area in the reversing display to show the real image of the rear surroundings, and only the rear-view is available

How it works:
In the reverse operation, the camera installed at the tail transmits the environment that has been seen to the S8 in real-time, and the S8 unit performs image splicing, generating a dynamic virtual environment having a 1:1 size with the real environment;
Then based on the vehicle dimension data provided and its body movement, the system dynamically displays the approximate distance between the vehicle and the surrounding obstacles in the simulated environment established by the system in real-time. Drivers can make decisions on how to move further or backward;

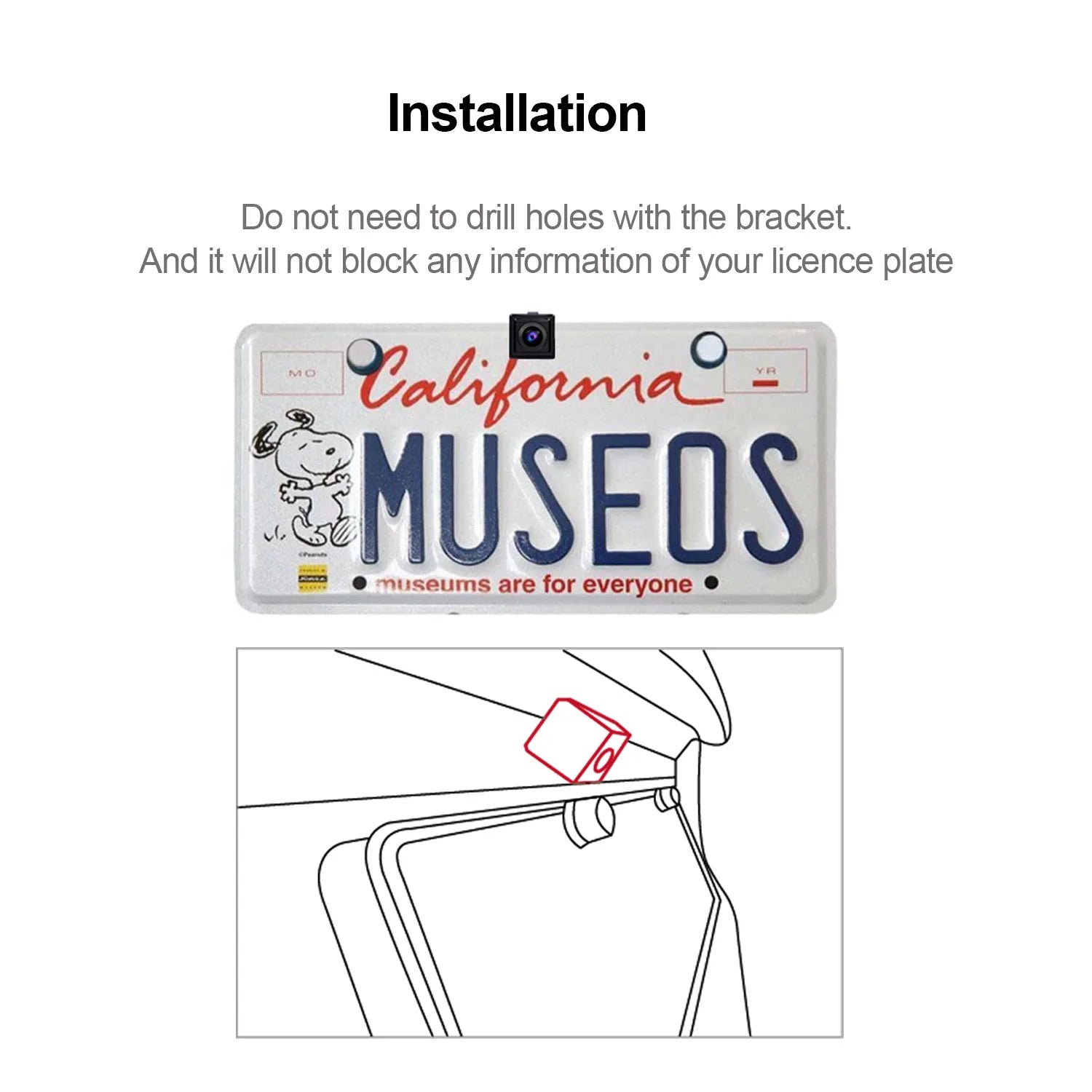

Easy installation

2 mounting options: you could choose mounting either with or without the bracket included. A 8-meter-long extension wire is included in the package.
